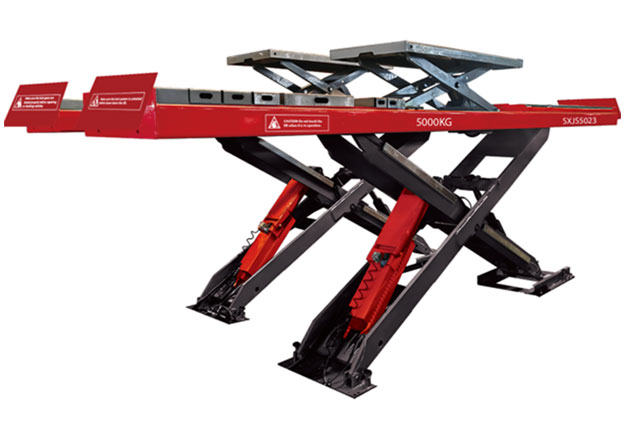

LK-SX50 Wheel Alignment Scissor Lift
$16,900.00 incl GST
The Lift King SX50 is a premium 5.0T lift capacity full height wheel alignment scissor lift for the commercial mechanical work shop and tyre industry.
The deck incorporates slip plates for the alignment turntables and 3.5T hydraulic sub-platform jacking beams for lifting the vehicle off the deck for wheel and tyre work.
This hoist can be installed either flush-to-the-floor in a pit, or bolted to the surface with the supplied plate, and for the ultimate in full maintenance capability an optional Chassis Play Detector is available.
FEATURES:
- 5.0T lift capacity heavy-duty construction with solid steel scissor arms for strength and stability
- Compact design for small spaces
- Full 2100mm lifting height
- Low 290mm minimum height with optional flush in-ground or surface mount installation
- Full wheel-alignment capability with turn tables supplied and with the latest design built-in slip plates assuring tyres are at their most natural position to assure accurate measurements
- In-built 3.5T sub-platform jacking beams for wheel/tyre/suspension and exhaust work
- Air safety locks
- Automatic warning alarm
- Manual pump connector allows lift to be lowered in case of power outages
- Australian Design Approved and Registered to meet WH&S requirements
- Warranty: 5-Year Structure, 1-Year Parts
Electronic Control Cabinet
Flush In-Ground Option
Solid Steel Construction
Optional Support Beam - $200
Chassis Plate Detector with wired remote - $3000
Optional Punch Design Ramp-$450

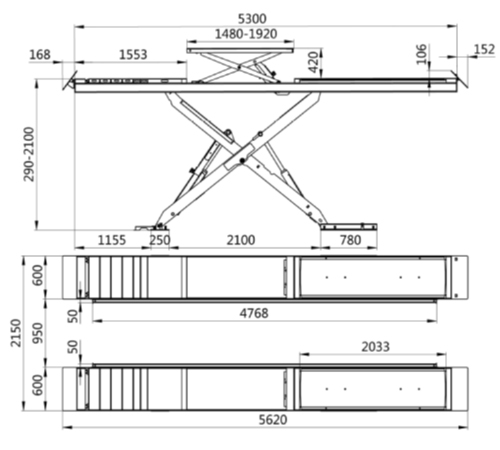

SPECIFICATIONS...
|
Model |
Lift King SX50 |
|
Lift Capacity |
5.0T |
|
Lift Height |
2100mm |
|
Sub-Platform Lift Capacity & Lift Height |
3.5T / 420mm |
|
Minimum Height |
290mm |
|
Platform Length |
5300mm |
|
Platform Widths |
600mm |
|
Overall Width |
2150mm |
|
Gap width between platforms |
950mm |
|
Air Pressure requirement |
0.8 Mpa |
|
Motor |
240V / 415V, 3KW |
|
Transport Package Weight & Size |
Pack 1: 535 x 71 x 72 cm weighing 2300kg |
|
|
Pack 2: 162 x 44 x 103 cm weighing 200kg |
|
Warranty |
5-Year Structural, 1-Year Parts |
