Single Post 1000kg Motor Bike/Mower/ATV Hoist

Model: Lift King LK-BMA

$5,900.00 Inc GST

  • (OPTIONAL ALLOY INSERTS EXTRA $500.00)
  • (OPTIONAL MOTOR BIKE WHEEL CHOCK EXTRA $150.00)
Single Post Service Storage Hoists

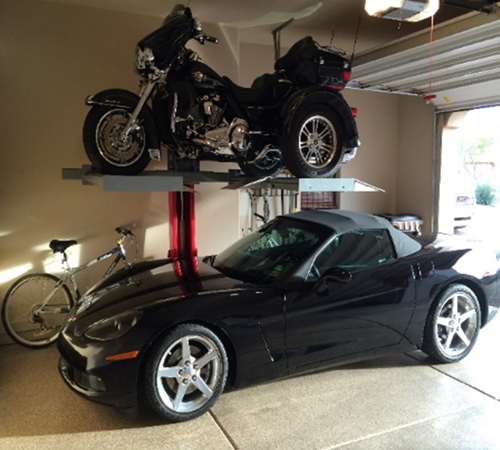

Bike/Mower/ATV Storage Hoist

More About The Single Post 1000kg Motor Bike/ Mower/ ATV Hoist

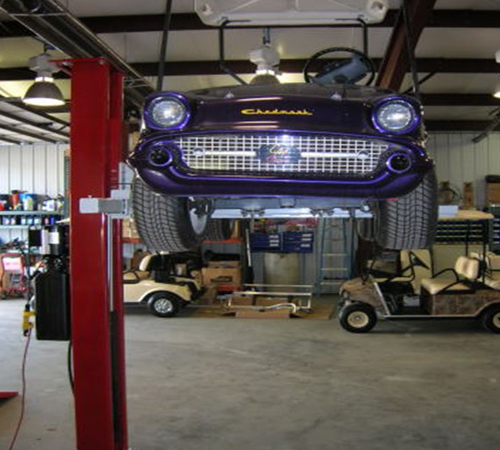

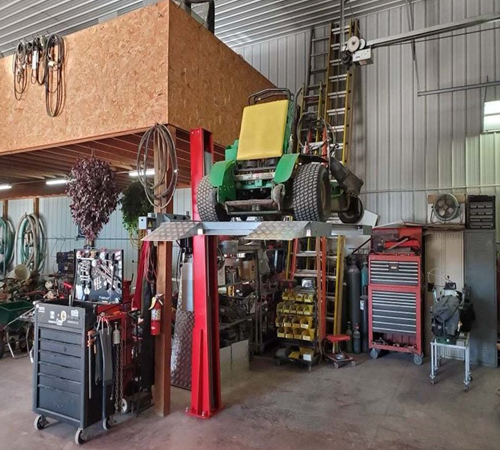

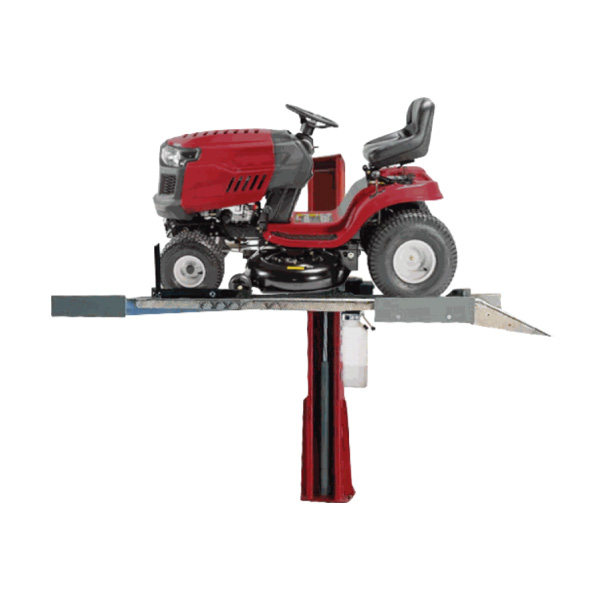

The LK-BMA single post Motor Bike/Lawnmower/ATV Service Hoist is a 1000kg capacity lift engineered for servicing and storing virtually any type and size of ride-on mower, light tractor, motor bike, golf cart, ATV/UTV’s and even light cars.

Approach ramps at the sides and at the front of the platforms allow for quick and easy access from all angles, and with a 1830mm lifting height you won’t be bending your back.

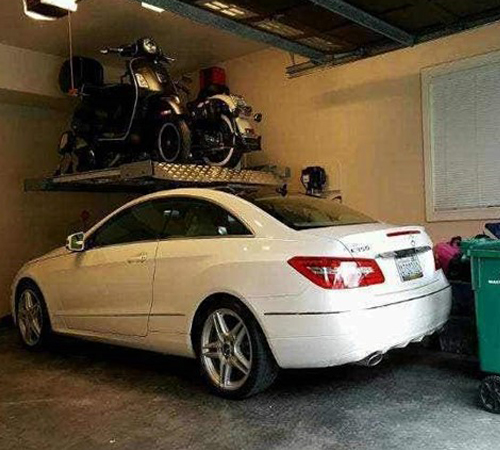

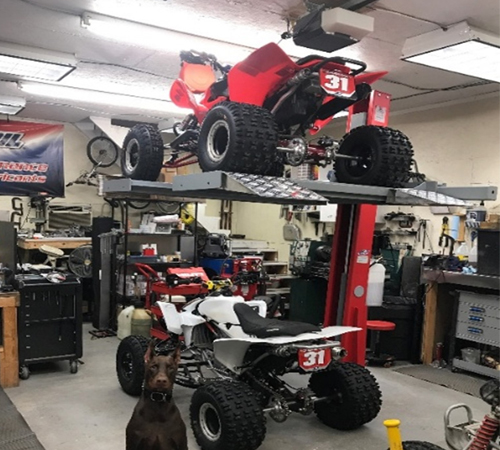

The single post design has a small footprint and allows for uninterrupted under-hoist parking to save room in your garage.

The side drive-on ramps and platforms are adjustable to accommodates a variety of vehicle widths ranging from an impressive 1587mm up to 2482mm wheelbase.
Electric over hydraulic power up button with manual safety lock release and descent makes for simple and reliable operation.

Optional Extras

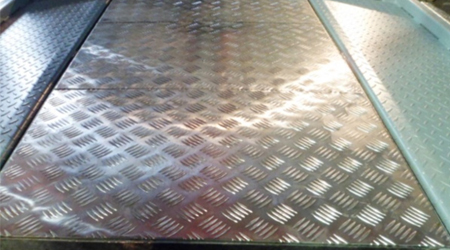

Alloy Inserts to fill the gap for storage - $500

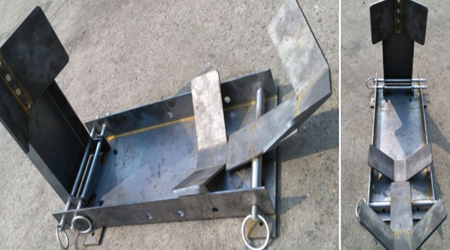

Motor Bike Wheel Chock - $150

Features:

  • Universal – designed to work with most sizes of mowers, light tractors, golf carts, motor bikes, ATV/UTV and small cars
  • Accessibility – entry from sides & front allow full access from all angles
  • Versatile – three directional drive-on, removable drive on ramps and adjustable width platforms from 1587mm up to 2482 mm wheelbase
  • Simple Operation – manual safety lock release handle
  • Storage – optional extra alloy inserts for full platform storage
  • Parking – single post design allows room underneath for parking
  • Warranty – 5-Year Structural (commercial), 1-Year Parts. Labour not included and returns prepaid by customer.  Warranty is valid for manufacturing defects only

Applications

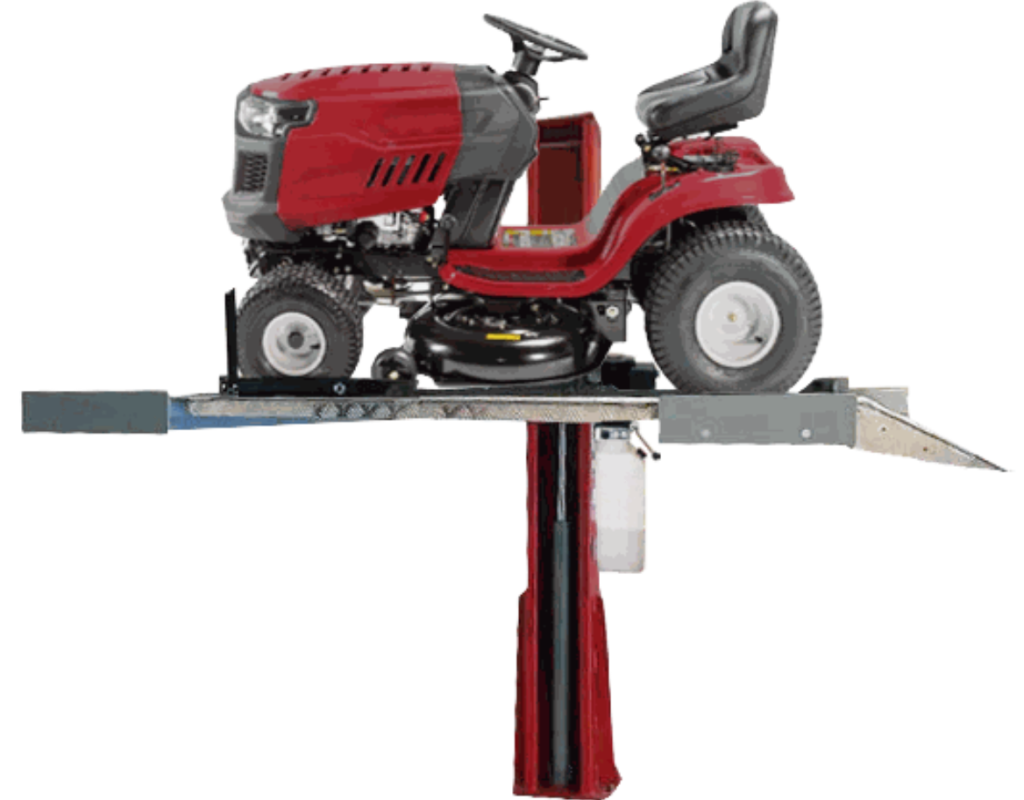

Ride On Mowers
Off Roads Vehicles
Golf Carts
Custom-Bikes
Tracktor

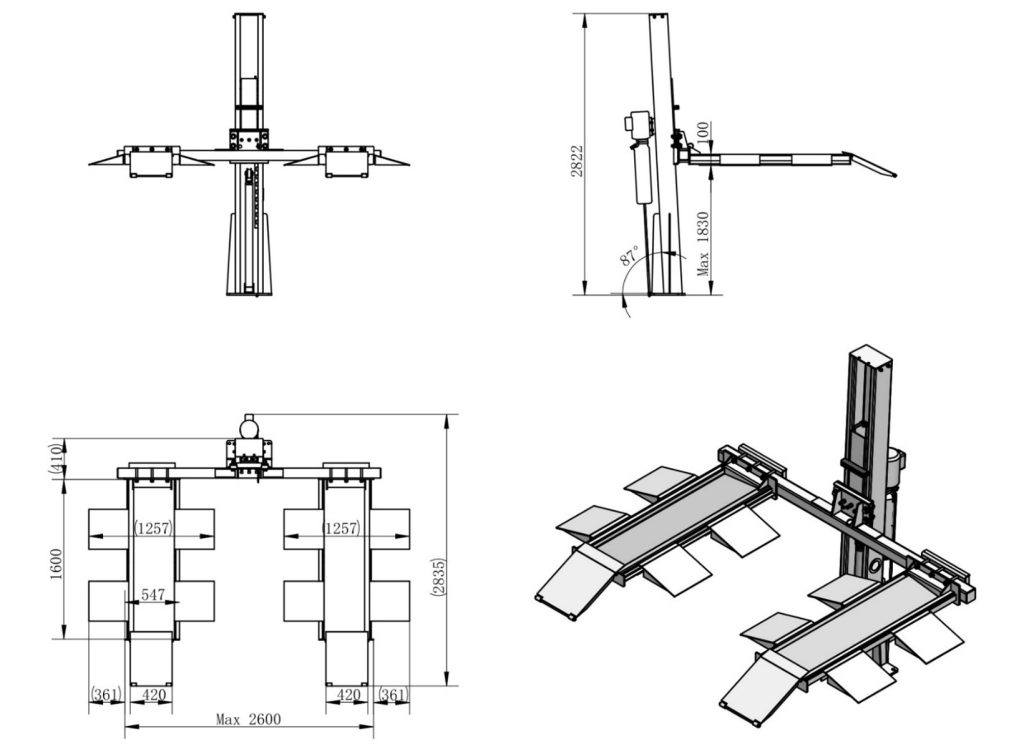

Lifting Capacity 1000kg
Maximum Lift Height Clearance Under Platform 1830mm
Post Height 2822mm
Overall Length 2835mm
Usable Drive-On Platform Length 1600mm
Overall Width 3322mm
Width Without Removable Side Approach Ramps 2642mm
Platform Width 547mm
Platform Width Adjustment 1587mm – 2482mm
Lifting/Lowering Time 60 sec up, 20 sec down
Net Weight 575kg
Transport pack size 3140 x 770 x 1100mm
Concrete Depth Required 150mm (6”)
Motor 240V single phase
