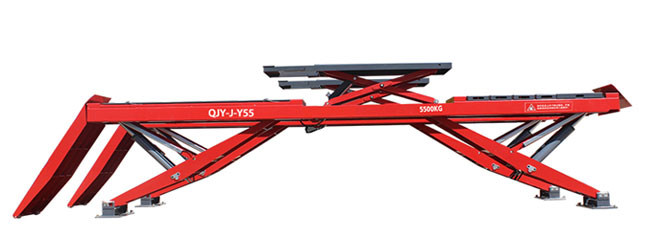

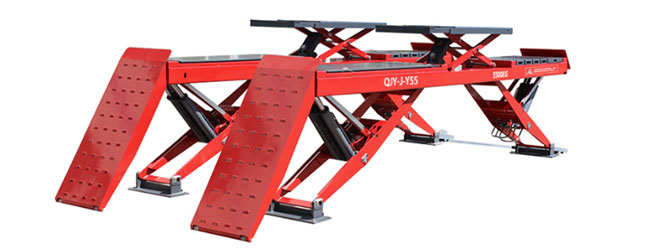

LK-Y55 Wheel Alignment 5.5T Scissor Lift

The Lift King Y55 is the latest design in scissor lifts for the commercial workshop.

The distinctive Y-shaped design enables complete vertical lifting and lowering, optimising the utilisation of space beneath the platforms to allow operators and machinery to move freely below the hoist with a full 2100mm height clearance.

Compared to the standard X-Type scissor lift, the Y55’s scissor arms are positioned more directly towards each end of the vehicle’s tyres, enabling it to lift with more power. The 4-point lifting scissor arms on both sides of the lifting platform gives more strength and stability to the hoist, with more supporting points keeping the platforms level for a more precise wheel alignment.

The deck of this 5.5T heavy-duty scissor wheel alignment hoist incorporates slip plates, wheel alignment turntables and 4.0T hydraulic sub-platform jacking beams for lifting the vehicle off the deck for wheel and tyre work.

This hoist can be installed either flush-to-the-floor in a pit, with an optional extra hydraulic small platform to cover the pit to enable level drive-through, or it can be bolted to the surface with the supplied plate.
