LK-6C Six Car Stacker
$16,900.00 incl GST
The LK-6C is our 6-Car Stacker in the standard C-channel post design, attracting a more competitive price to our exclusive LK-6 Stacker in the US box section design.
The LK-6C is a great solution for congested workshops where rental space is at a premium and instead of having to pay for larger premises the only way to get the cars out of the way and give you more working space is to go up. The LK-6 is also the perfect solution for the private buyer owning a number of cars who needs to create more space in their shed or man-cave.
Features...

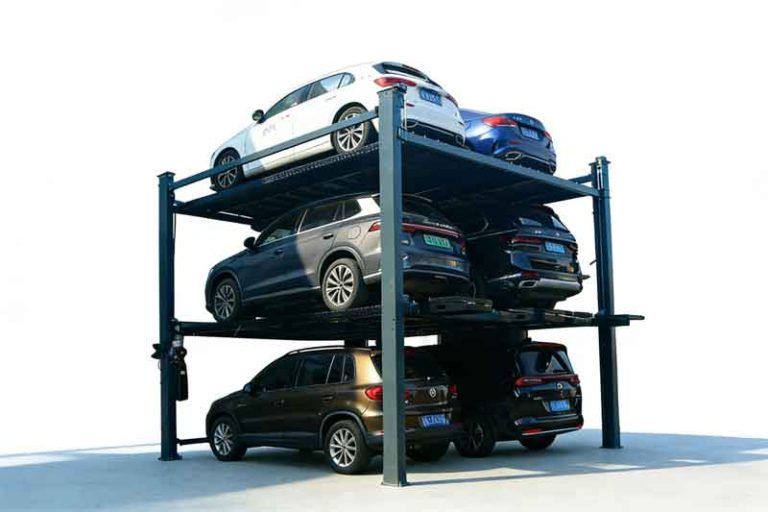

- Conveniently stores 6 vehicles
- International CE design tested, and successfully sold throughout the European market
- Single post-mounted motor in 240V single-phase or 415V three-phase with fully electronic control cabinet operating up, down and safety locks
- 3095mm lift height clearance under 1st level
- 4000kg weight capacity on 1st level, 3500kg weight capacity on top level
- Pre-set 2000mm clearance height underneath 1st level that can be increased to any height with adjustment to height limit switch position, 1850mm clearance under top level when 1st level set to default 2000mm
- Plastic drip-trays for both levels covering entire length to fully protect vehicles underneath
- Double electric safety locking system with a secondary cable break safety system on each post, hydraulic cylinder protection with in-built anti-burst valves
- Heavy-duty cables and pulleys for extra strength
- Independent hydraulic cylinders concealed under master platforms using high quality Italian seals
- Heavy duty checker plate anti-skid approach ramps and platforms
- Anti-rust powder coated finish, smart looking 2-tone gunmetal grey posts and crossbeams with black platforms
- Warranty: 10-Year Structural (domestic use), 5-Year Structural (commercial use). 1-Year parts, rams & motor. Warranty is valid for manufacturing defects only. Labor on warranty claims not included

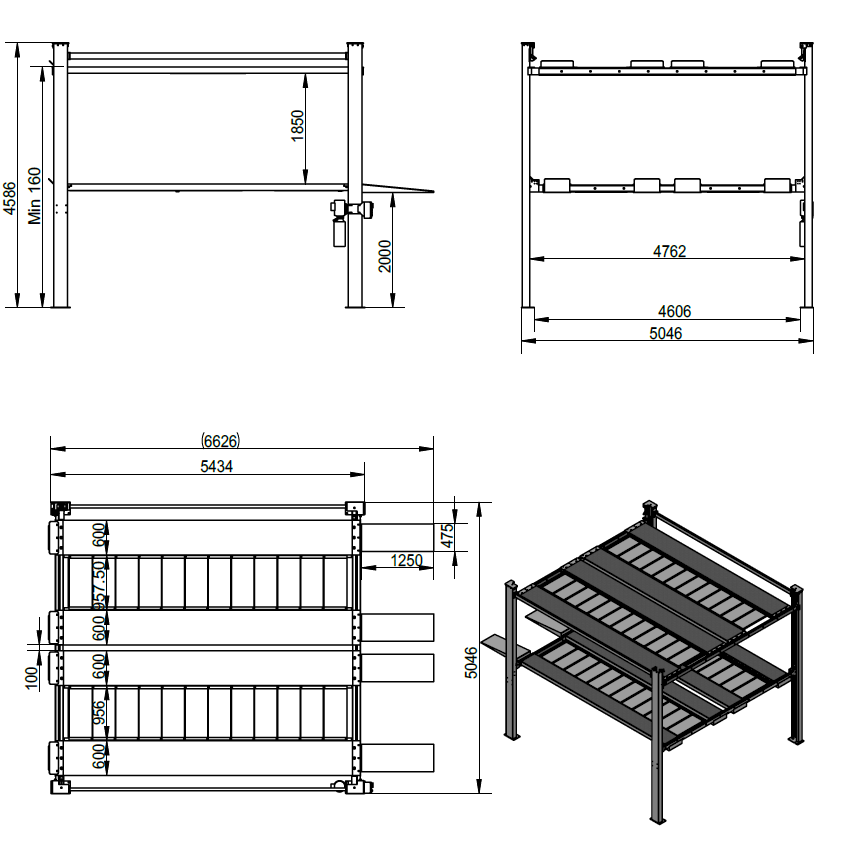

Specifications....
Model | LK-6C |
Lift Capacity 1st level / top level | 4000kg / 3500kg |
Height Clearance 1st level / top level | 2000mm adjustable / 1850mm |
Post Height | 4586mm |
Overall Length / with drive-on ramps | 5434mm / 6226mm |
Overall Width | 5046mm |
Width between inside of posts | 4762mm |
Drive-through Width | 4606mm |
Motor | 240V single-phase / 415V three-phase |
Pack Weight | 3030kg |
Pack Size | 5345 x 720 x 1493 mm |
Warranty (labour excluded) | 10-Year Structural (commercial), 5-Year Structural (domestic), 1-Year Parts. |
