Single Post Parking Hoist
Model: Lift King LK-SPP30
$5,900.00 Inc GST
- Minimal space saving single-post design
- Instantly doubles your garage space
- Access from underneath for service work
- 3.0T lift capacity
Overview

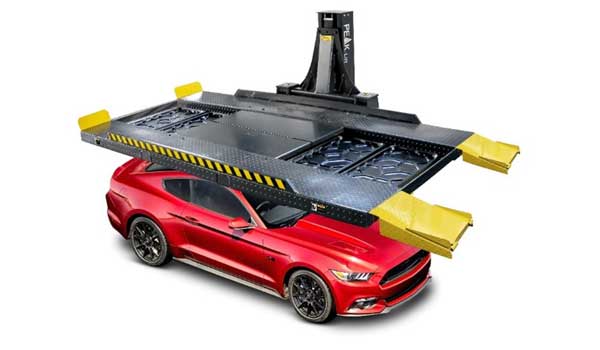

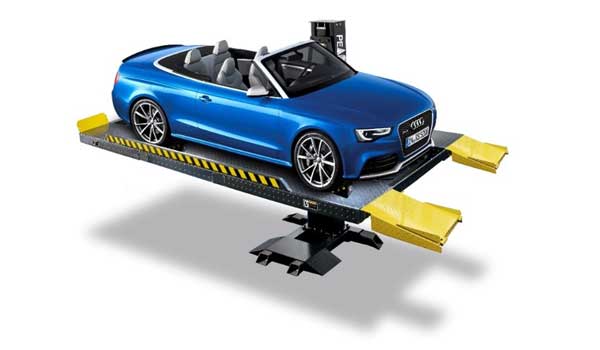

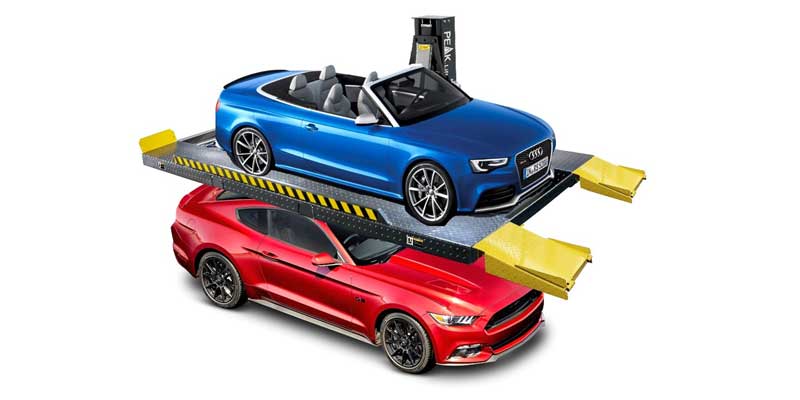

The new Lift King LK-SPP30 single post hoist is a small footprint space saving design that combines the versatility of a parking hoist with central free access for vehicle maintenance.
It’s durable heavy-duty construction and 3000kg lift capacity can effortlessly handle lifting most passenger cars and 4WD’s, and its extra wide 540mm platforms can accommodate most wheel bases.
With a low 2780mm post height it can fit into most car garages. A durable and simple manual safety lock release system and dual-direction entry design makes this hoist very user friendly.

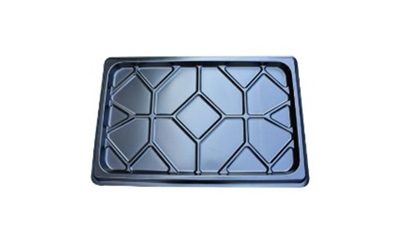

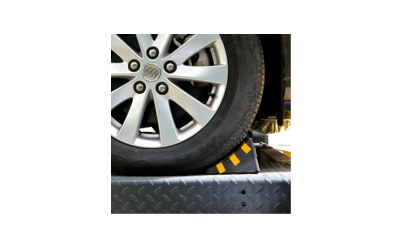

Hoist Extras…
Features
- Single post design allows for clear floor space
- Central free access for car maintenance as well as storage of cars
- Simple and reliable manual safety lock release system
- Easy electronic control for up/down cycle
- Commercial grade hydraulic cylinder with heavy duty lift chain
- Low post height allows for low ceiling residential installations
- Wide deck platform accommodates various cars
- Commercial grade with reinforced centre beams and structural ribbing for both commercial and private use
- International CE Certified
- Warranty: 10 Year Structural & 1 Year Parts

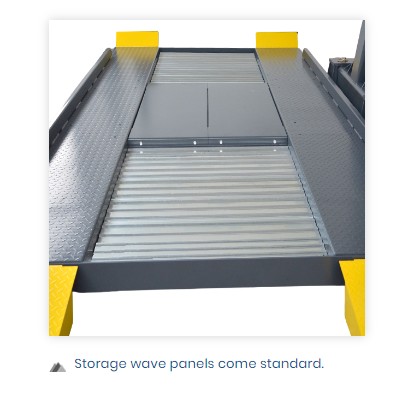

- Light weight Alluminium Wave plates
- Easily removed (some nuts, bolts and screws) centre plates and waveplates for access to under vehicle

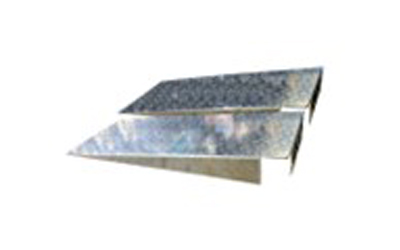

- Foldable drive-on ramps also easily removable to replace with optional alluminium drive on ramps
- Manual safety release lock mechanism
- Height limit switch for automatic safety stop

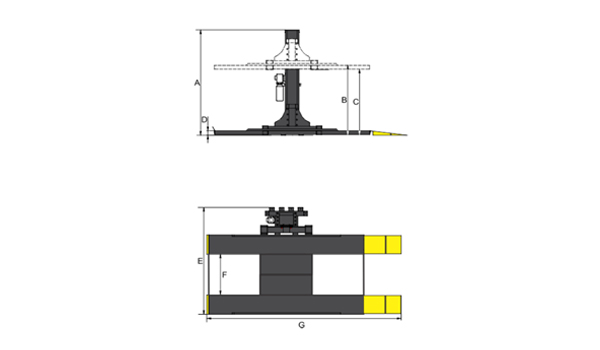

Specifications:
| Model | LK-SPP30 |
| Lifting Capacity | 3000kg |
| Height Overall – A | 2780mm |
| Maximum Lift Height – B | 1880mm |
| Maximum Lock Height at top of Runway | 1783mm |
| Maximum Height Underneath Runway – C | 1760mm |
| Maximum Locking Height Underneath Runway | 1663mm |
| Minimum Height – D | 155mm |
| Width Overall – E | 2820mm |
| Width Outside of Platform to Platform (wheel base max width) | 2157mm |
| Platform Widths | 540mm |
| Gap Width Between Platforms – F | 1077mm |
| Length Overall – G | 4880mm |
| Lifting Time | 39 sec |
| Motor | 240V single-ph, 2.2Kw, 3Hp |
| Gross Weight | 1300kg |
| Transport pack size (2 x packs) | 3980x540x772mm – 1100kg, 1260x1050x450mm – 200kg |
