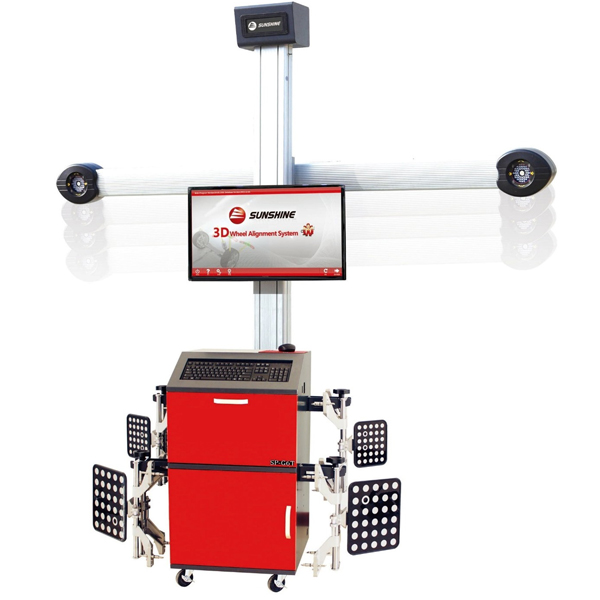

3D Wheel Aligner Machine
Model: Lift King 3D SP-G6T
$13,500.00 Incl GST
The SP-G6T is a high-quality 3D Wheel Aligner suitable for commercial work shops and tyre shops.
Functions:
- Measurement of key parameters including camber, caster, kingpin inclination, toe-in & toe-out, set back, and thrust angle
Features:
- 32″ LED TV display delivers a clear visualization of 3D technology capabilities.
- Beam height adjustment is fully automated for ease of use.
- Mobile cabinet design provides flexibility in workstation setup.
- Operators can be guided by an indicative light surrounding the camera during vehicle movement, eliminating the need to monitor the computer screen.

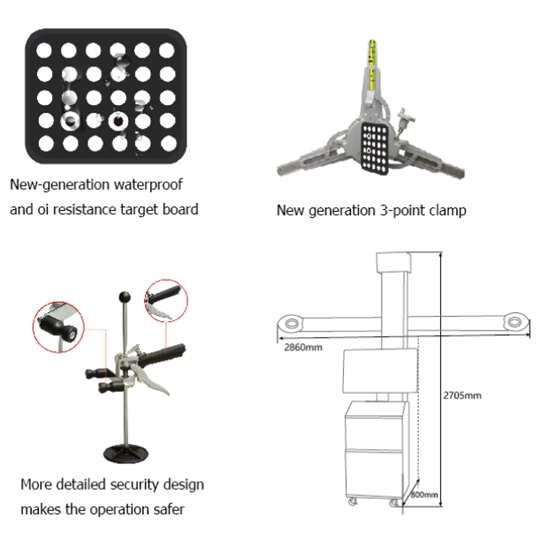

Standard Configuration:
- Movable compact cabinet
- 32″ LED TV with 3D technology
- DELL computer
- Mini Target plates
- Three-finger clamp
- Brake fixer
- Steering wheel fixer Wedge pads
- Steel turntables
- Turntable transition blocks
Basic Functions:
- Measurement of key parameters including camber, caster, kingpin inclination, toe-in & toe-out, set back, and thrust angle
Extended Functions:
- Tire removal and adjustment (requires rim adapter)
- Body dimension measurement
- Steering wheel adjustment
- Engine bay adjustment
- Toe curvature measurement (requires B5 tool kit)
- Lock toe adjustment
Automatic Tracking Beam:
The system features automatic tracking beam functionality to ensure precise alignment operations.
…Pair the SP-G6T with any one of our Wheel Aligner Hoists for a complete professional package ….
